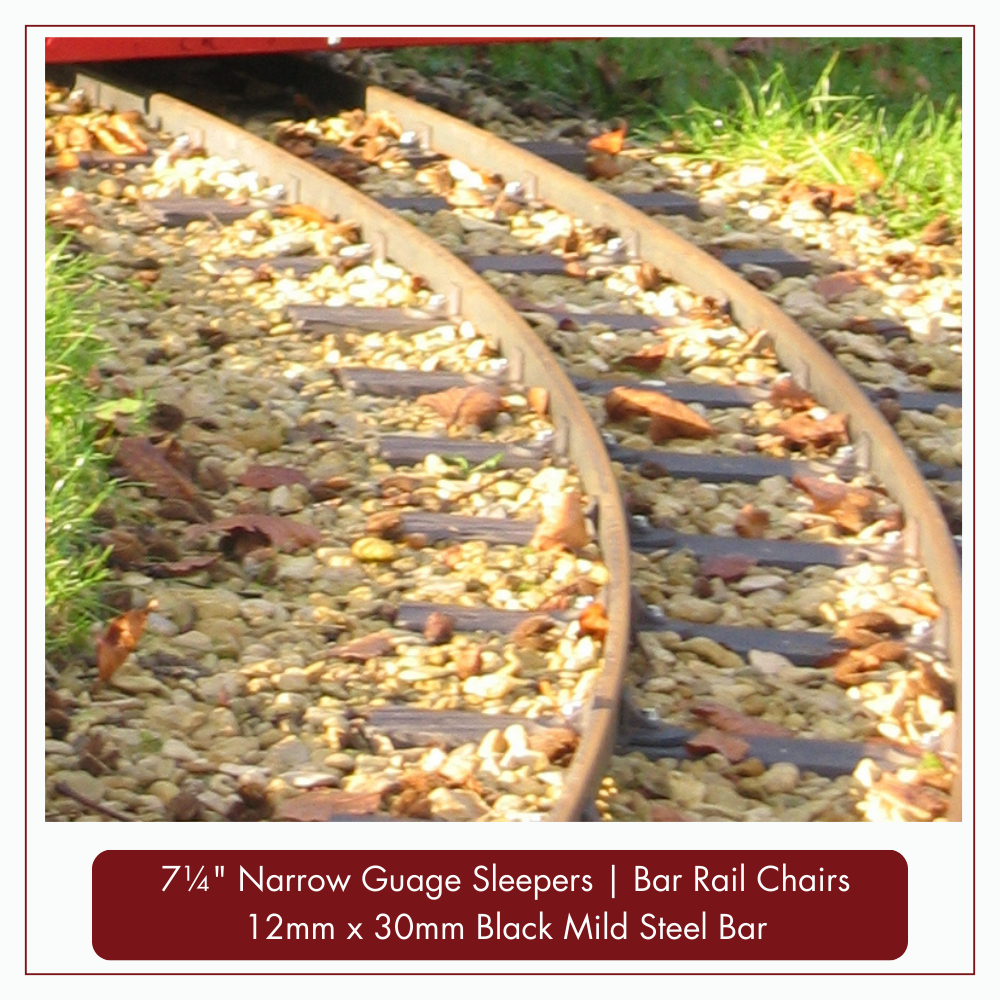

12m - 7¼" Narrow Gauge Track Kit for Black Mild Steel Bar as Rail

With our bar rail system, you have plenty of options to create a customized railway that suits your needs. We have put together 5 different track configurations in 7¼" and 5" gauge, that you can select between the heavier 12mm x 30mm bar or the lighter 10mm x 20mm option or a combination of the two.

Our 12m Kits include the exact number of sleepers, chairs and screws needed to build a 12-meter section of track with bar rai in 7¼" or 7¼" & 5" narrow gauge. This takes the guesswork out of calculating what you need, and ensures that you have everything required to start building your railway.

Please note that the black mild steel bar is not included as part of the kit or are fishplates. However, the materials can be easily sourced from your local steel stockist, such as https://www.metals4u.co.uk/materials/mild-steel/mild-steel-round-bar. It is available in 3 & 6m lengths.

One of the standout advantages of our system is automatic gauge widening on curves. Our chairs facilitate gauge widening by simply turning one chair 180 degrees for a 1/32nd widening, or both chairs 180 degrees for a 1/16th widening.

Gauge widening is essential in constructing a miniature railway, particularly to prevent flange climb, which occurs when the wheel's flange climbs up and over the rail, leading to derailment risks. The increased lateral restraint on the wheels achieved by widening the gauge ensures the stability and safety of the miniature railway, allowing for smoother operation and minimizing the risk of derailments

Click here for more information on how gauge widening is achieved using the 'PNP Railways Track System’

Options for 7¼" Narrow Gauge Track

Kit 1 - 7¼" Narrow Gauge Track - using 12mm x 30mm Bar Rail - PNR-12I 7¼" Narrow Gauge sleeper & PNR-12K - Bar Rail Chair

PNR-12V - 12m (39ft) - 7¼" Narrow Gauge Track Kit

Kit 2 - 7¼" Narrow Gauge Track - using 10mm x 20mm Bar Rail - PNR-12I 7¼" Narrow Gauge sleeper & PNR-12L - Bar Rail Chair & Packer)

PNR-12W - 12m (39ft) - 7¼" Narrow Gauge Track Kit

If you are looking for 7¼" & 5" Narrow Gauge Track Click Here

7¼" & 5" Narrow Gauge Track options include:

Kit 3 - 7¼" & 5" Narrow Gauge Track - using 12mm x 30mm Bar Rail - PNRI-12 7¼" Narrow Gauge sleeper & PNR-12K - Bar Rail Chairs

Kit 4 - 7¼" & 5" Narrow Gauge Track - using 10mm x 20mm Bar Rail - PNR-12I 7¼" Narrow Gauge sleeper & PNR-12L - Bar Rail Chair with Packer

Kit 5 - 7¼" & 5" Narrow Gauge Track - using a combination of 12mm x 30mm Bar Rail for the 7¼" line and 10mm x 20mm Bar Rail for the 5" gauge line - PNR-12I - 7¼" Narrow Gauge sleepers & PNR-12L - Bar Rail Chairs with Packer (to lift the line up to the same level as the 7¼")

All plastic sleepers and rail fixings in the PNP Railways range are manufactured from high-grade engineering polymers that are extremely durable and resistant to rot, frost, and UV radiation. UV stabilizers are added to the base polymers to help prevent UV radiation degradation and extend the life of the products.
