Manufacturers of Authentic Reproductions of Historical Railway Components in 3½", 5", 7¼" & 10¼" Gauge Specialising in Vacuum Brakes & Trackwork
A slightly over scale sleeper that is designed for stability when passenger hauling. Although of not any particular scale, it is highly suited for both standard and narrow gauge locomotives and rolling stock.
The sleepers are injection moulded from high grade engineering polymers, making them extremely durable, rot, frost and UV resistant.
The system is very quick and easy to assemble, no drilling is required. The sleepers are moulded with pilot holes for the screws, plus automatic gauge widening built-in.
The sleepers have hollow ribbed undersides to allow the ballast to enter, making an extremely stable base.
The following rail fixing options can be used with this sleeper:

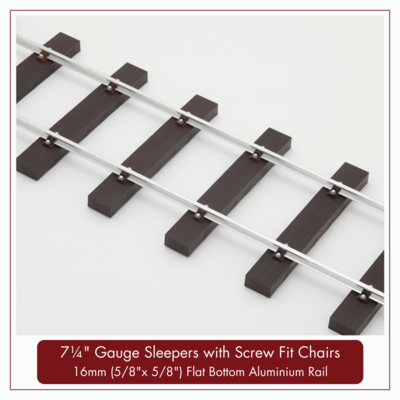

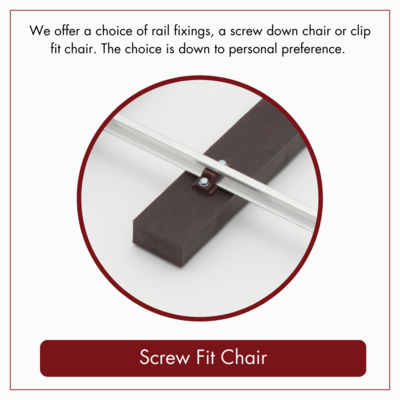

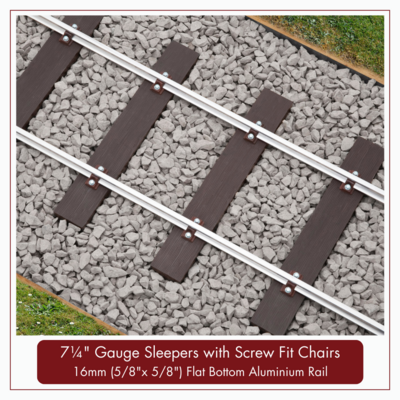

- Screw Fit Chair to suit 16mm (5/8" x 5/8") flat bottom aluminium rail or (21mm) 2lb yard steel or aluminium rail.

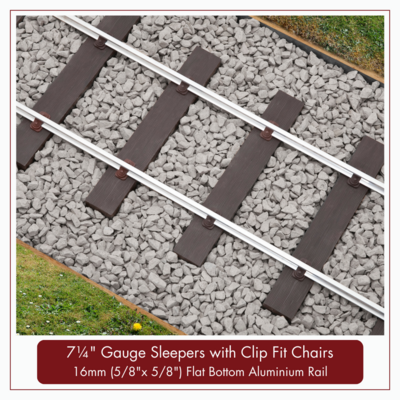

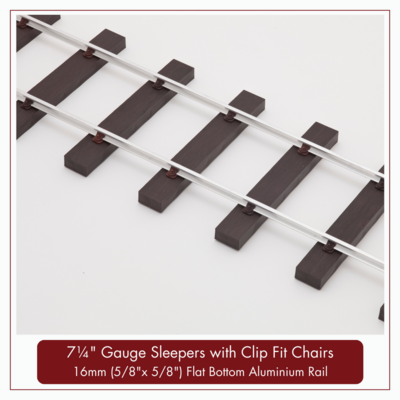

- Clip Fit Chair to suit 16mm (5/8" x 5/8") flat bottom aluminium rail.
- Bar Rail Chair to suit 10mm x 20mm steel bar rail.
garden or for use as a portable track.
Both systems are easy to assemble and benefit from selectable gauge widening, the advantage of the Clip Fit chairs, is that no screws are required, just slide the chairs onto the rails, and push into the sleepers.

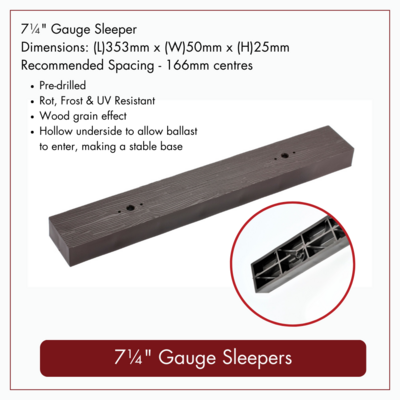

7¼” Gauge Sleeper Dimensions:
(L) 353mm x (W) 50mm x (H) 25mm
Recommended Sleeper Spacing:
166mm centres
Material - Polypropylene
All plastic sleepers and rail fixings in the PNP Railways range are manufactured from high-grade engineering polymers that are extremely durable and resistant to rot, frost, and UV radiation. UV stabilizers are added to the base polymers to help prevent UV radiation degradation and extend the life of the products.
